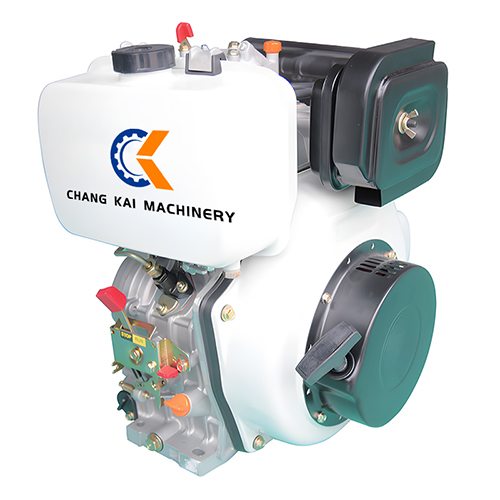

CKD192FB/FE
Features
| Prodct Name | Air-cooled diesel engine |
| Product Model | CKD192FB/FE |
| Type | Single cylinder,Upright,4-stroke, Air-cooled |
| BoreX stroke(mm) | 92X75 |
| Displacement(cc) | 499 |
| Combustion systems | Direct injection |
| Compression ratio | 19.5:1 |
| Rated speed(rpm) | 3000/3600 |
| Rated power(kW) | 8/8.5 |
| Max.power(kW) | 8.5/9.3 |
| Rated Horse Power(hp) | 10/12 |
| Fual tank capacity(L) | 5.5 |
| Fual consumption(L/hr.) | ≤2.3 |
| Lubricant capacity(L) | 1.65 |
| Starting Fashion | Recoil starter/Elec.starter |
| Output Shaft | Crankshaft/Camshaft |
| Fuel consumption rate kWh | 275/280 |
| Fuel trademark | 0#（summer），-10#（winter）diesel |
| Lubricant trademark | CD grade or SAE10W-30 15W-40 |
| Net Weight(kg) | Recoil starter 52/Elec.starter 55 |
| Overall dimenion L x W x H(mm) | 510X490X570 |
